Google Cloud KMS

Google Cloud KMS allows you to store and manage your wallet's cryptographic signing keys in Google Cloud's infrastructure. You can choose between software-based or hardware (HSM) protection for your keys.

Prerequisites​

Before you begin, make sure you have:

  • A Google Cloud project with the Cloud KMS API enabled
  • A service account with appropriate KMS permissions
  • The service account credentials JSON file
  1. Click Settings.
  2. Under Generic, click Identifiers.
  3. Select the Cryptographic key tab.

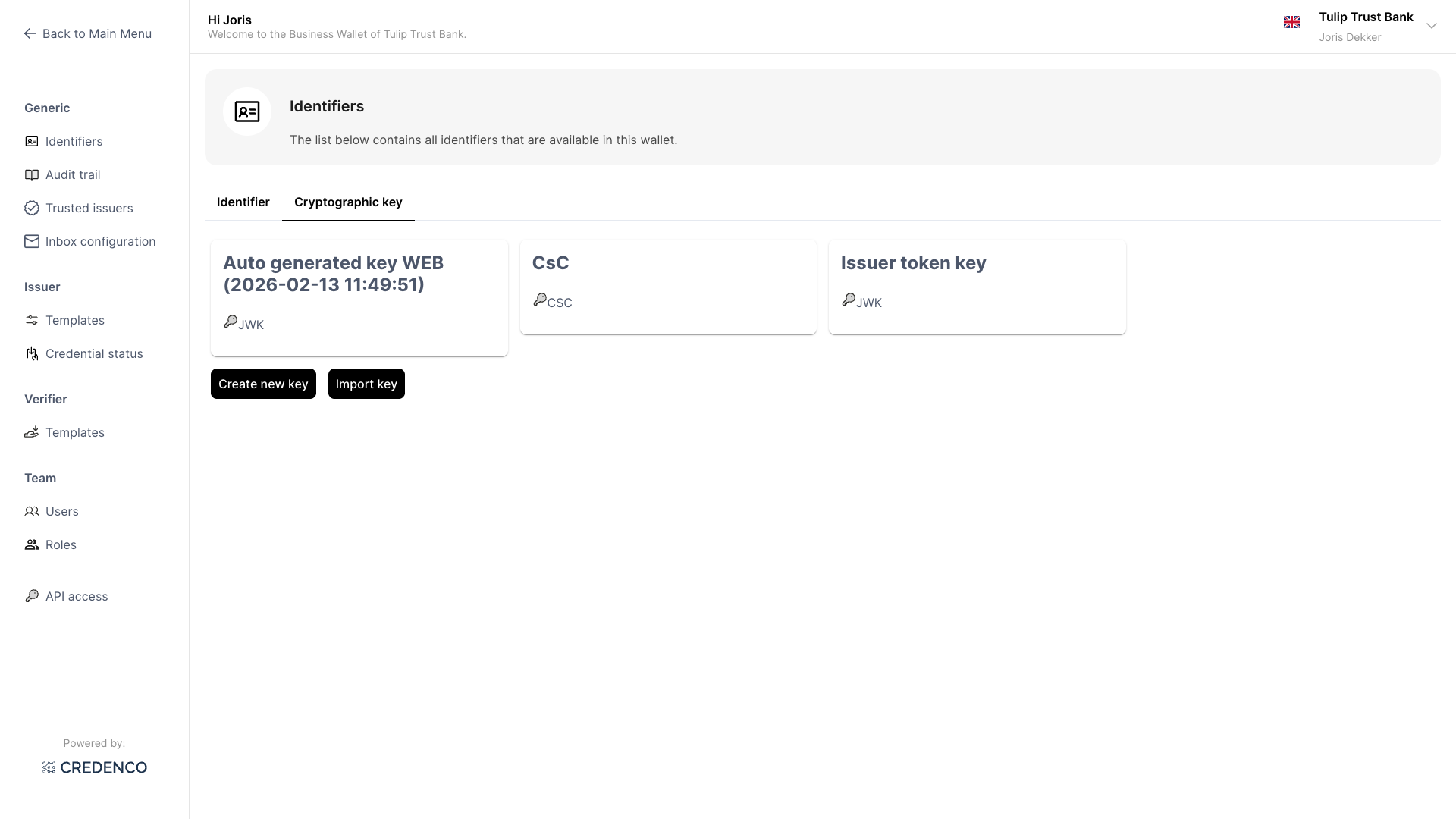

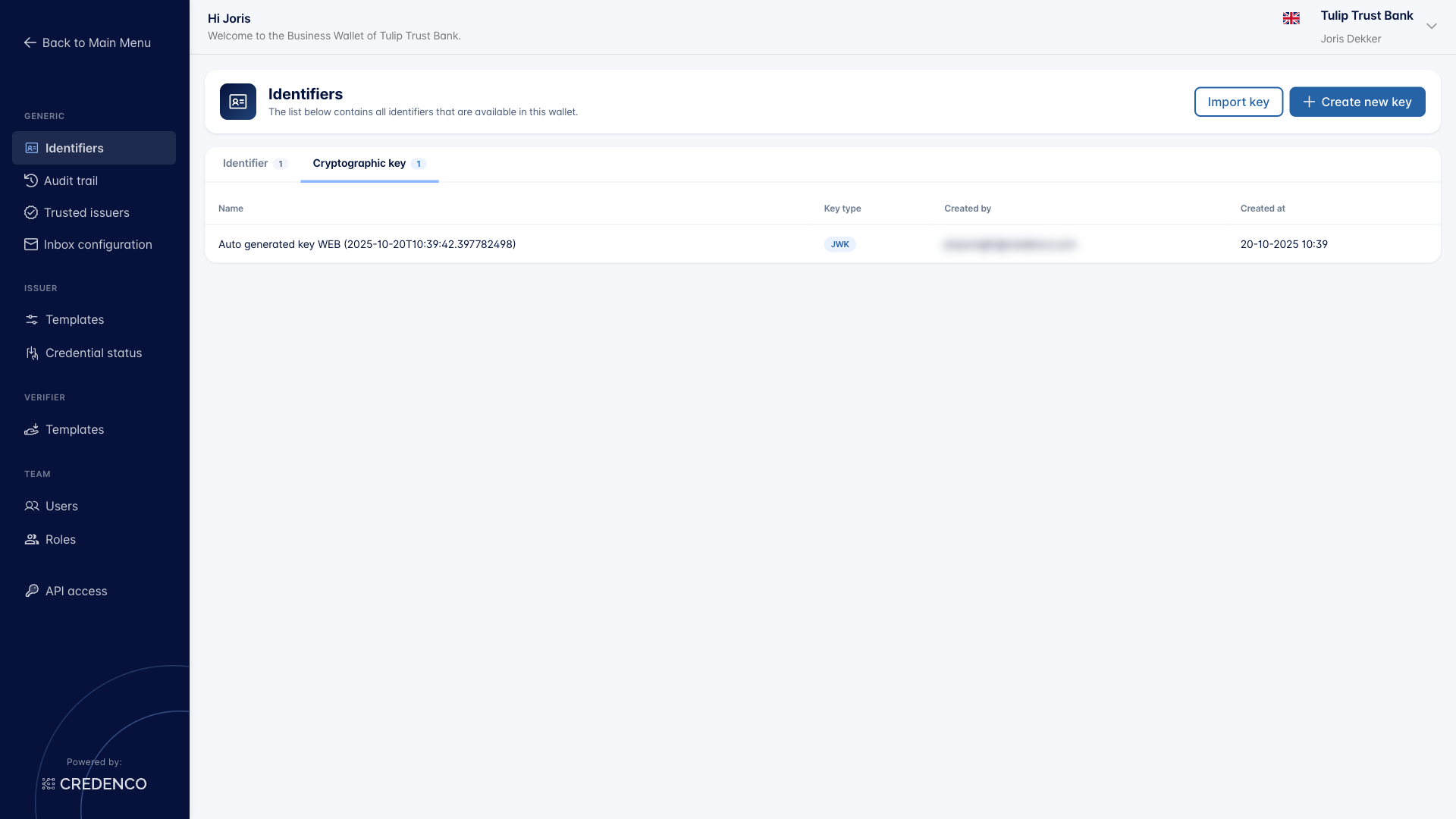

Cryptographic key list
  1. Click Create new key.

Configure a Google Cloud KMS key​

  1. Select Google Key Management Service as the Key type.
  2. Enter a Display name for the key. This name is shown in the wallet when key selection is needed.

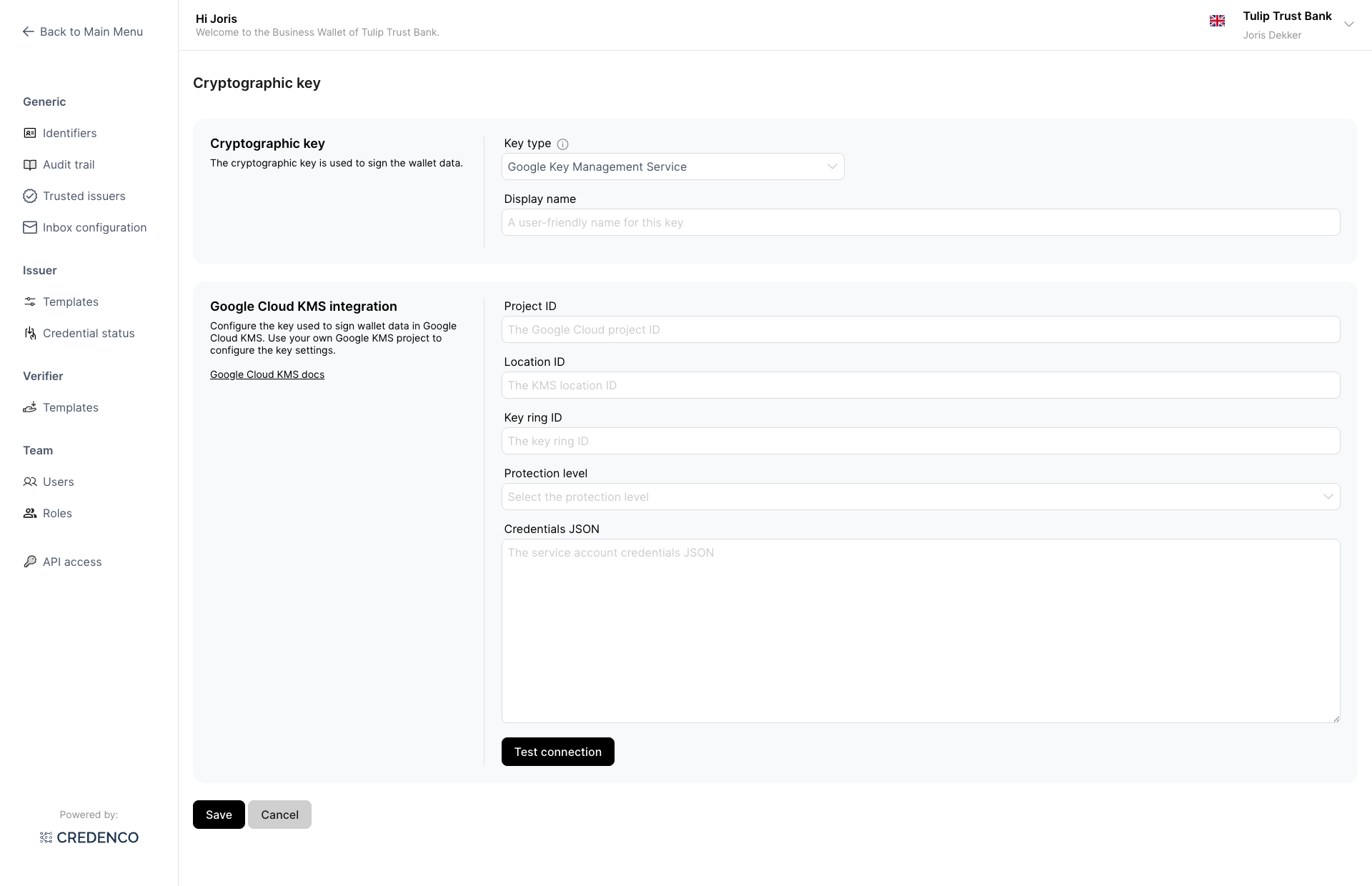

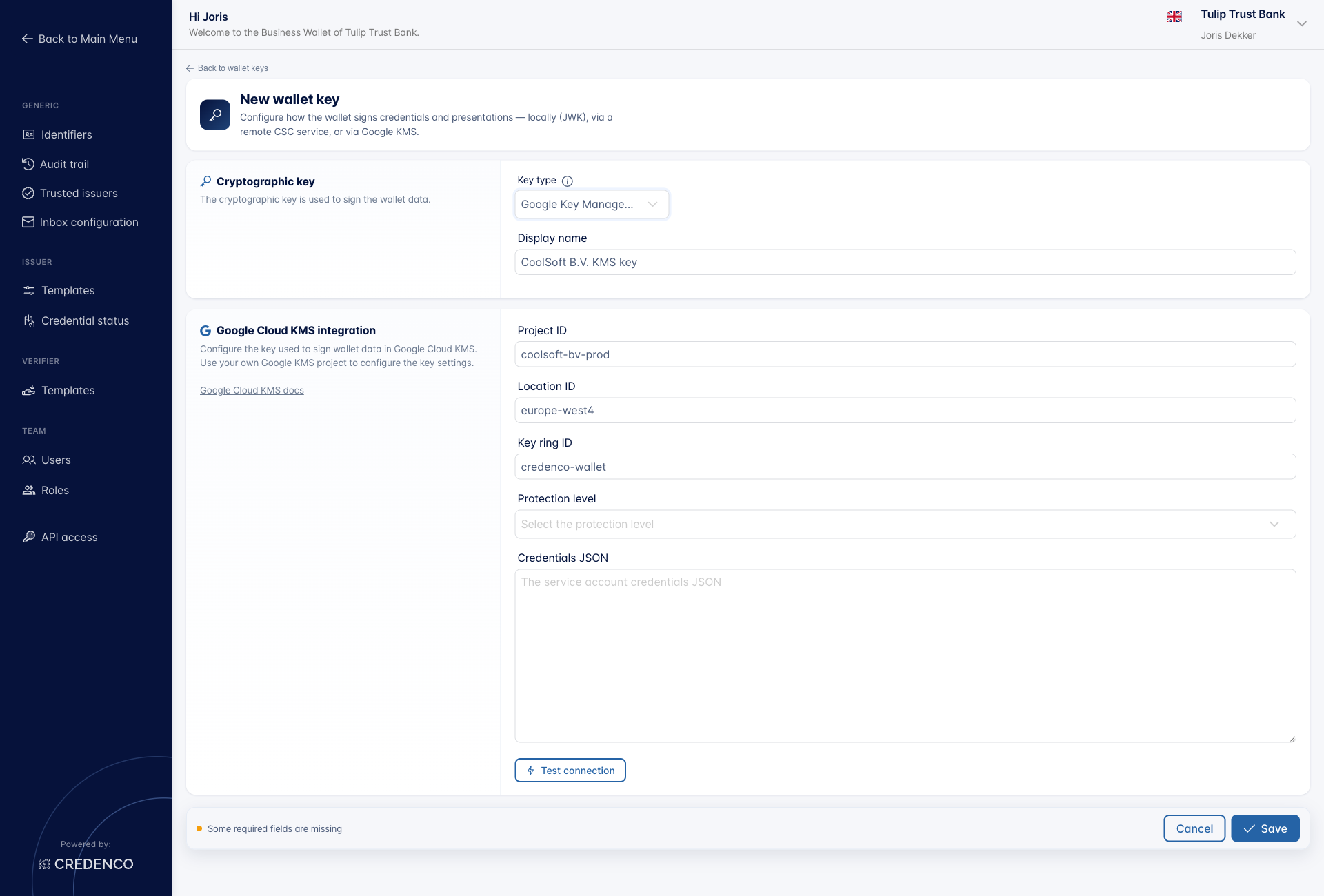

Google Cloud KMS key form
  1. Fill in the Google Cloud KMS configuration fields:
FieldDescription
Project IDYour Google Cloud project identifier
Location IDThe Google Cloud region where the key ring is located (e.g. europe-west4)
Key ring IDThe name of the key ring that will contain the key
Protection levelChoose Software for software-based key storage, or HSM for hardware security module protection
Credentials JSONPaste the full contents of your service account credentials JSON file

Obtaining the Credentials JSON​

The Credentials JSON is a service account key file that allows the wallet to authenticate with Google Cloud. To obtain it:

  1. Go to the Google Cloud Console.
  2. Navigate to IAM & Admin → Service Accounts.
  3. Select an existing service account or create a new one.
  4. Make sure the service account has the Cloud KMS CryptoKey Signer/Verifier role (or a custom role with equivalent permissions).
  5. Click Keys → Add Key → Create new key.
  6. Select JSON as the key type and click Create.
  7. A JSON file will be downloaded. Open it and paste its full contents into the Credentials JSON field.
caution

Keep the credentials JSON file secure. It grants access to your Google Cloud KMS resources. Do not share it or commit it to version control.

  1. Click Test connection to verify that the wallet can connect to Google Cloud KMS with the provided configuration.
  2. Click Save to create the key.
Required permission

You need the Identifiers (Read) permission to view this screen, and Identifiers (Change) to create, edit, or delete cryptographic keys.
